2026 FRC Flip Climb

Fusion, FusionCAM, Mach3Mill · 2026

A flip-climb endgame mechanism for the 2026 FRC game that transmits over 400 Nm of torque to flip and hold a 115+ lb robot.

Describe this image

Technical Overview

Development

Assembly

Conclusion

Gallery

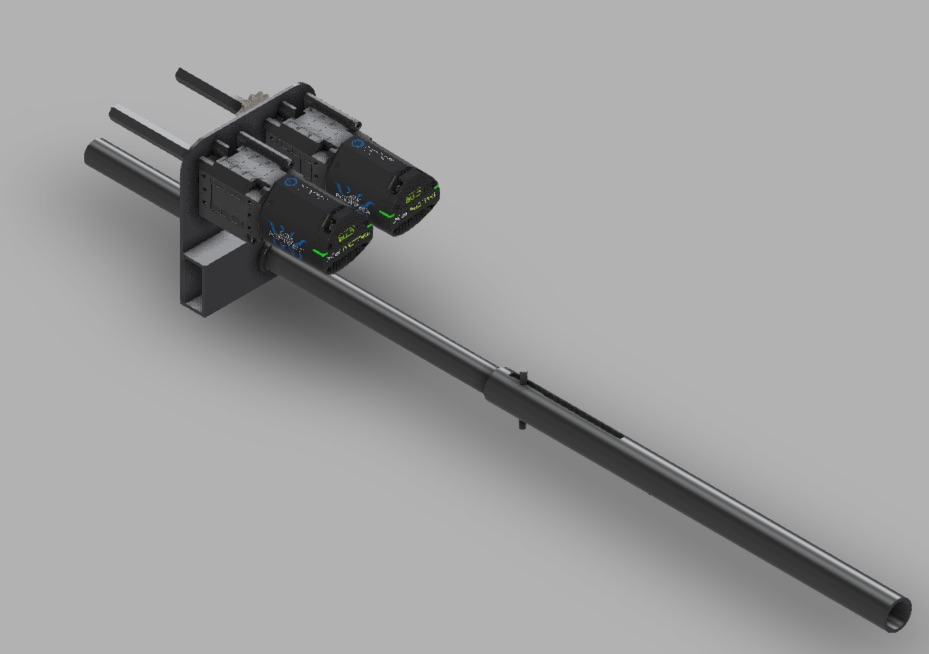

First CAD prototype. Note slot in outer pipe

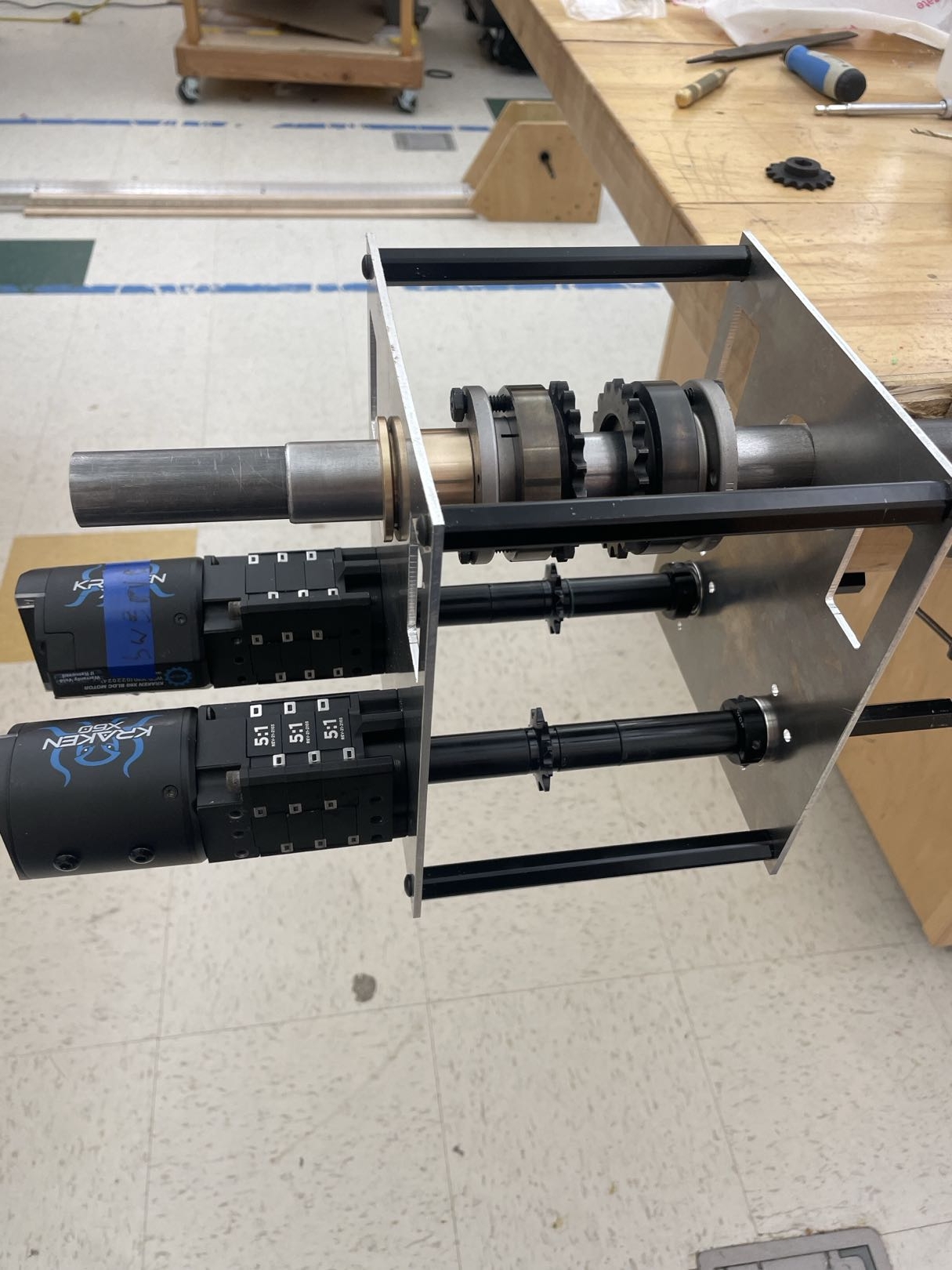

Assembled next iteration featuring live axle+split taper bushing bore sprockets

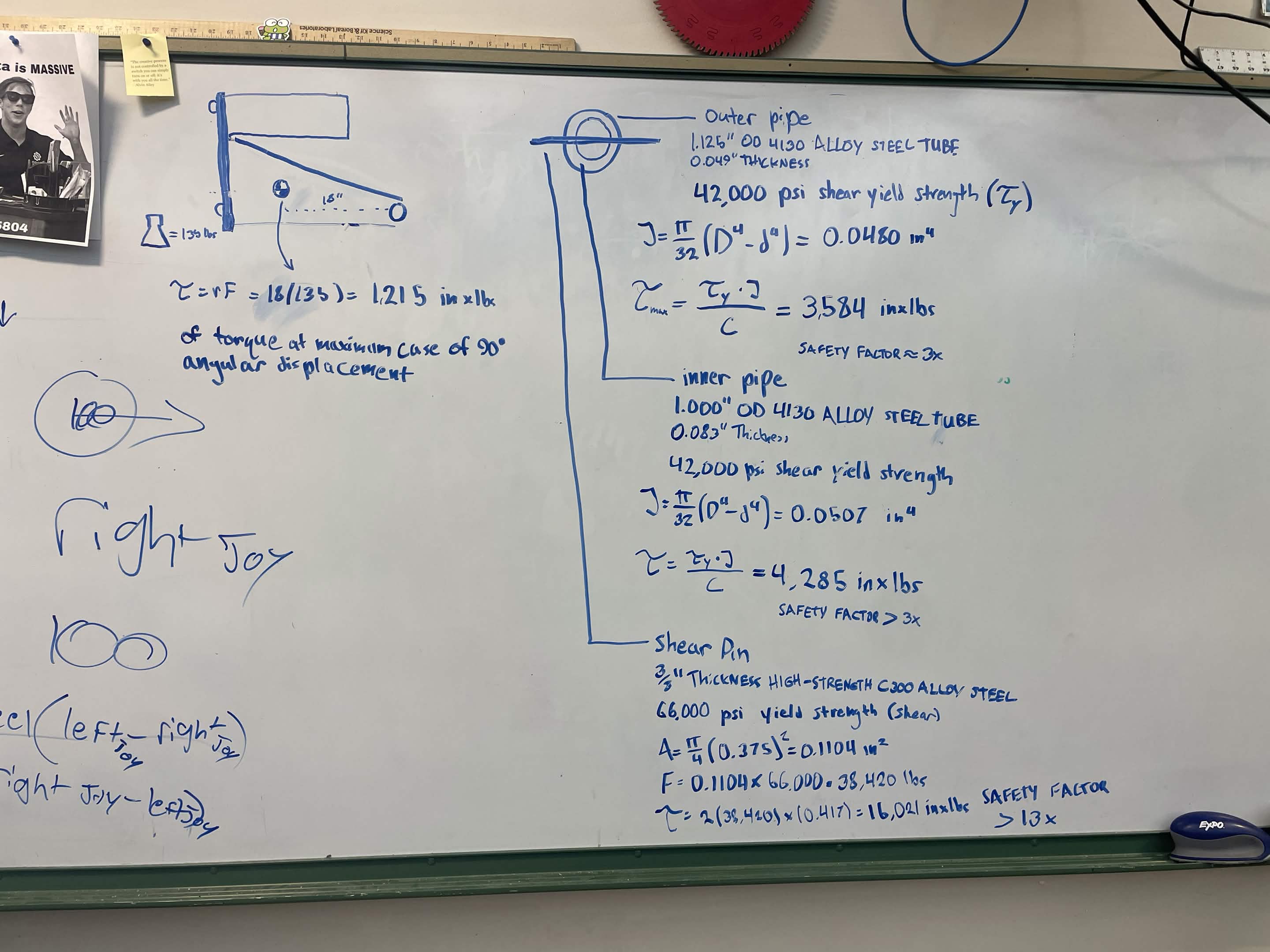

The math said it would work...Right?

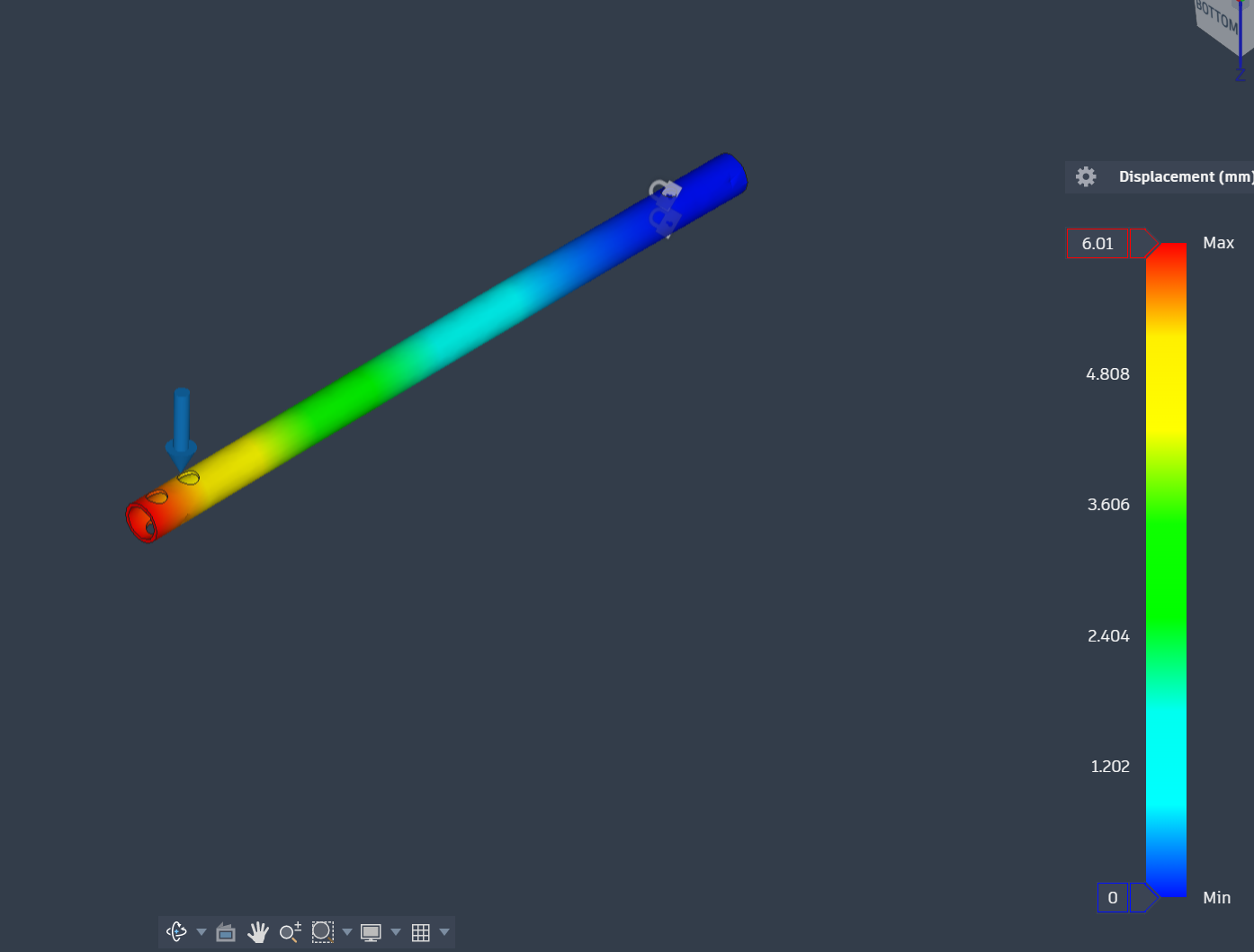

Lever moment outer pipe FEA

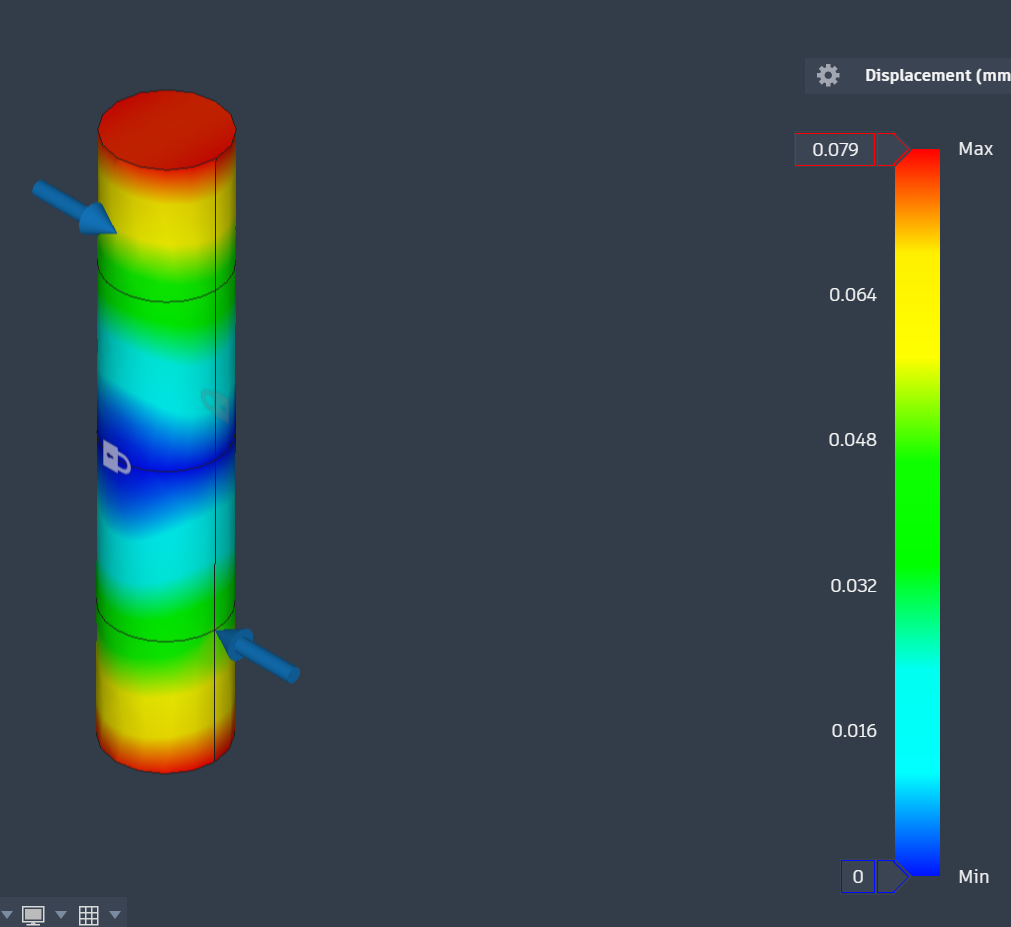

Shear pin FEA

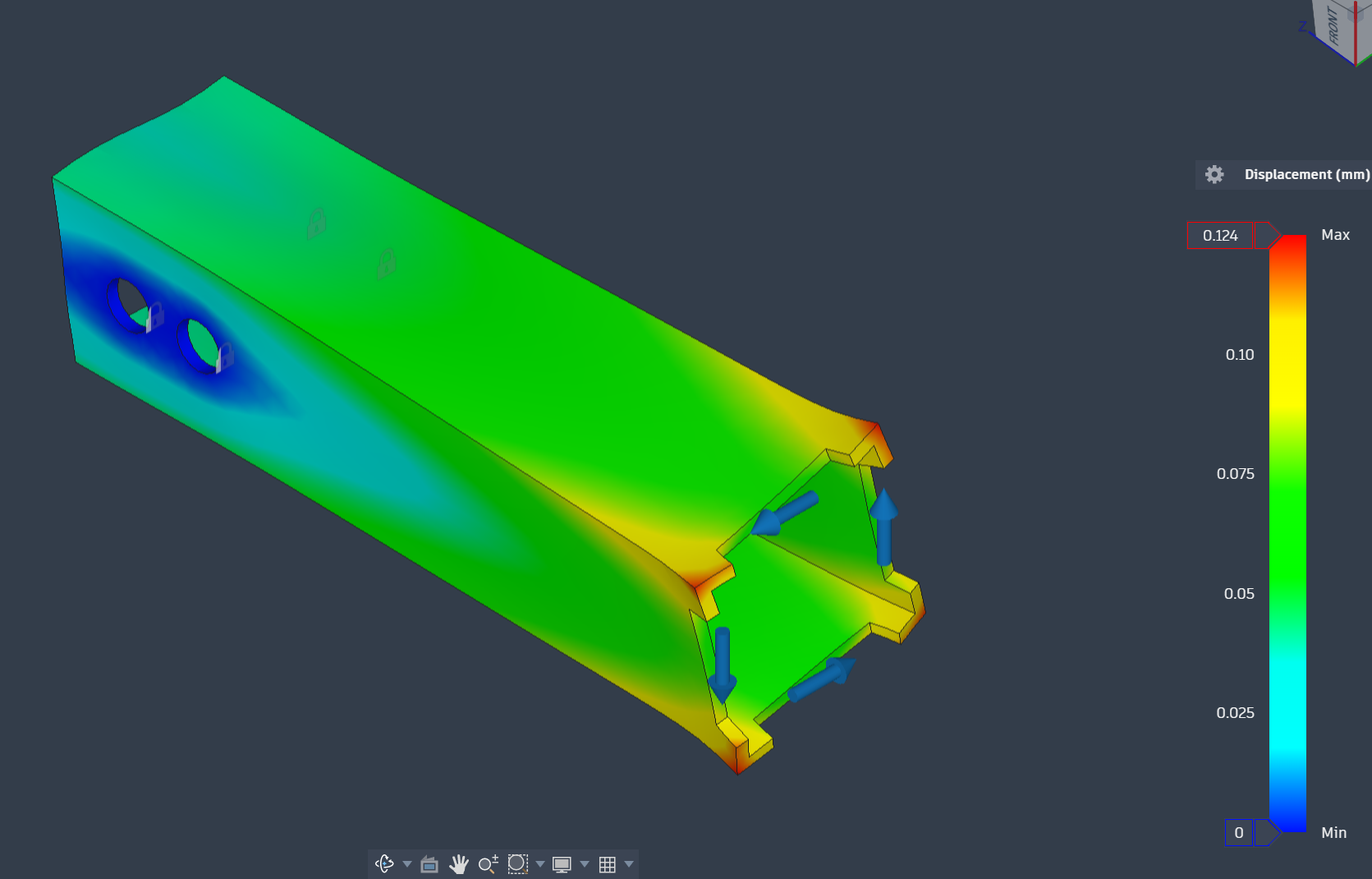

Gripper tube FEA

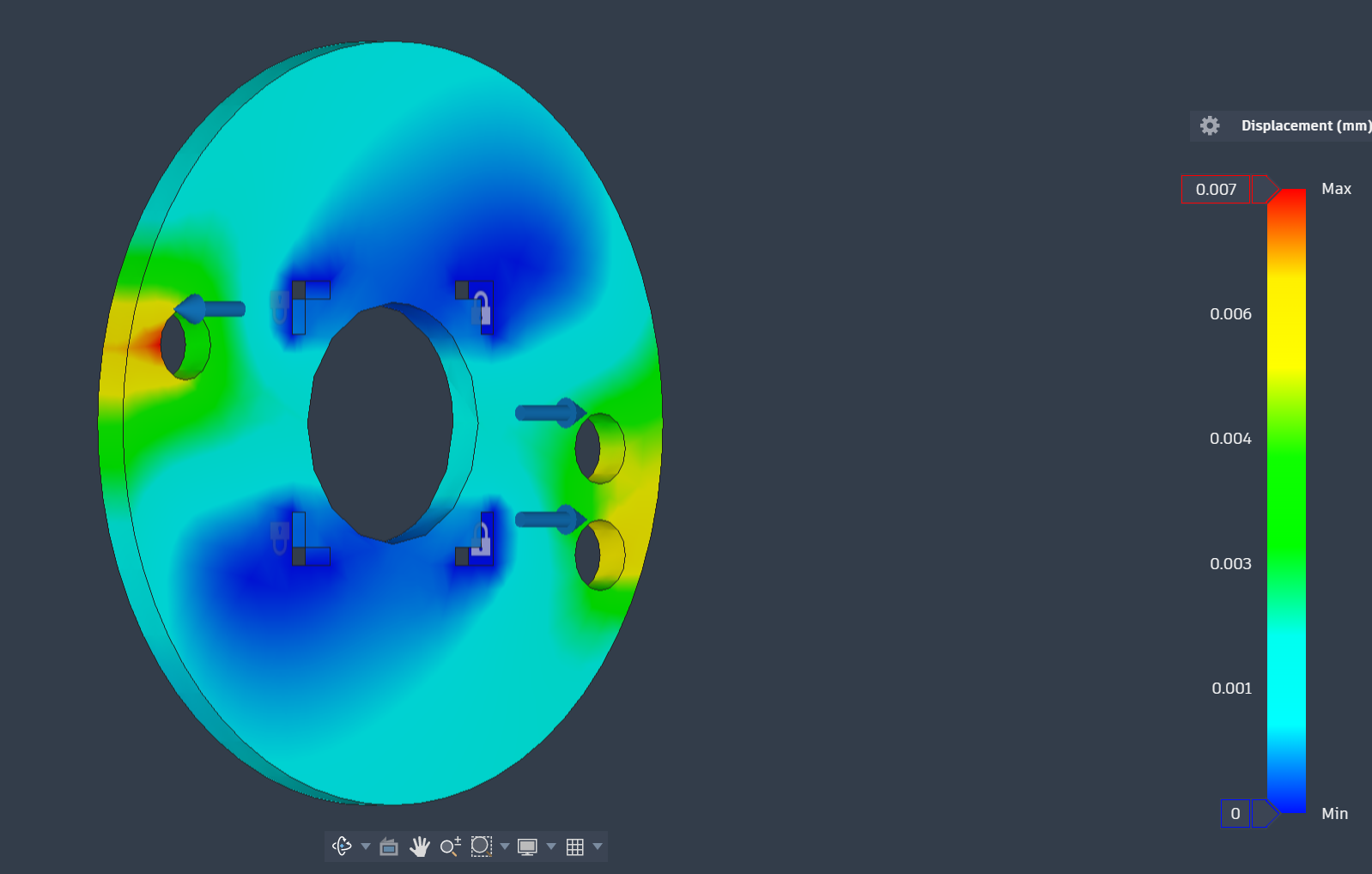

Gripper plate FEA

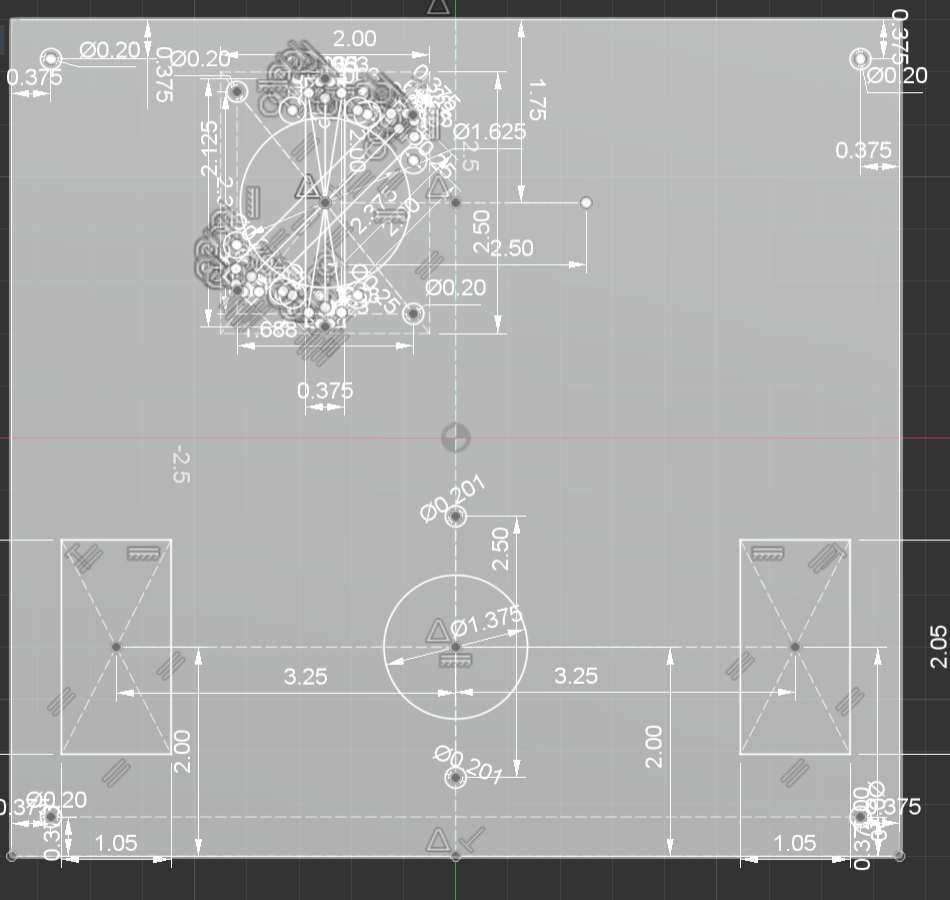

Chaotic climber plate sketch

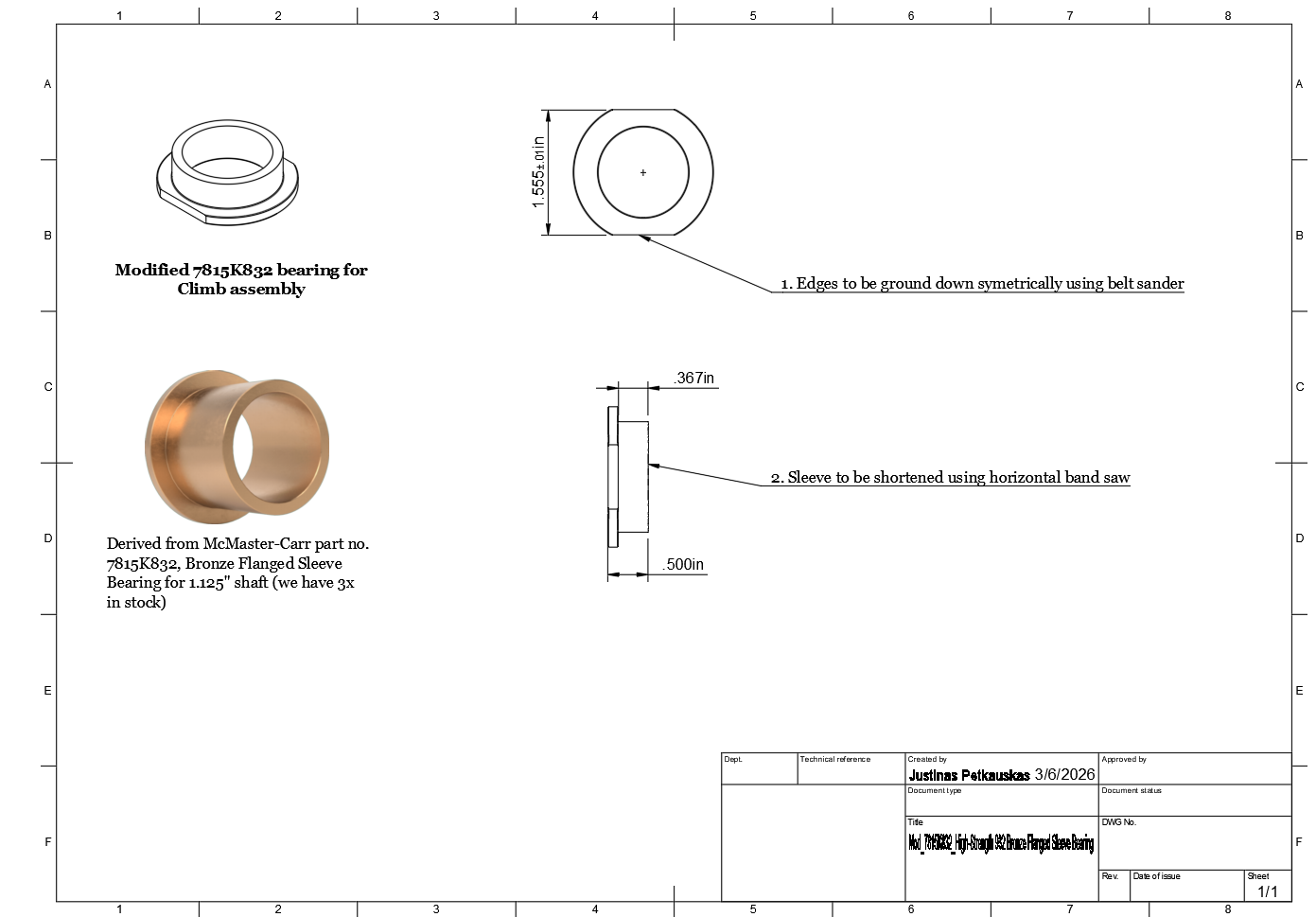

Drawing with instructions for bushing modifications

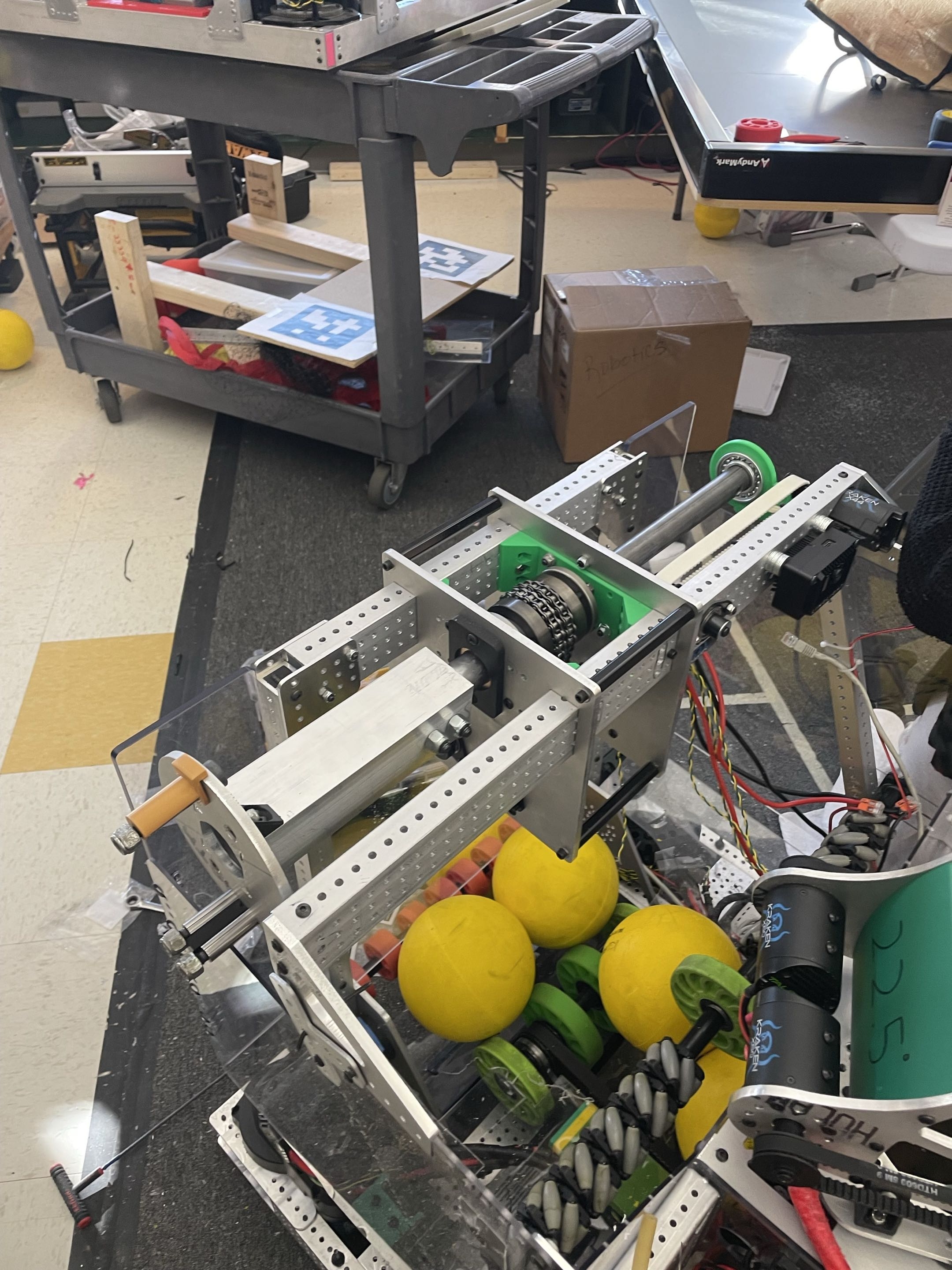

First prototype mounted on robot

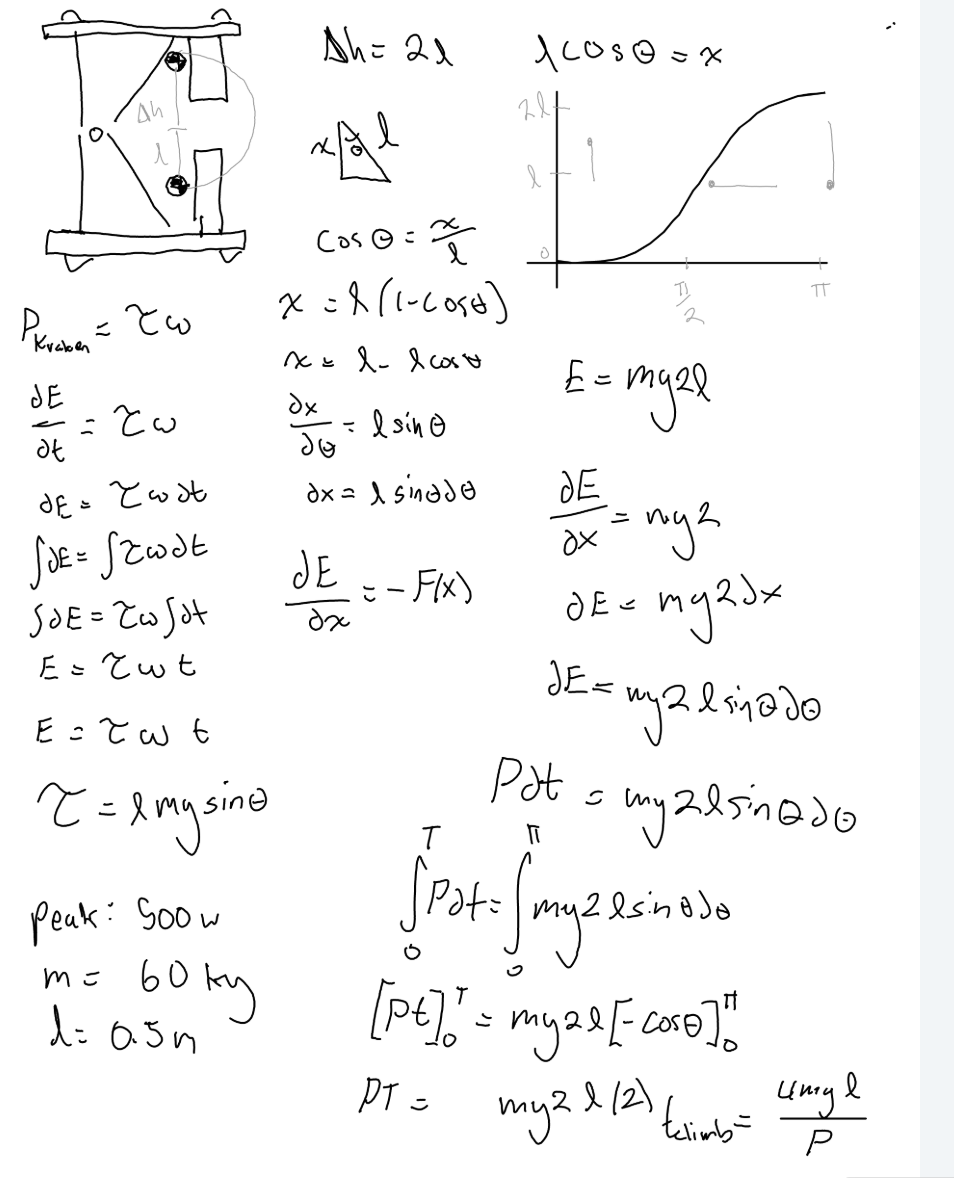

Work-energy analysis for hypothetical climb timing

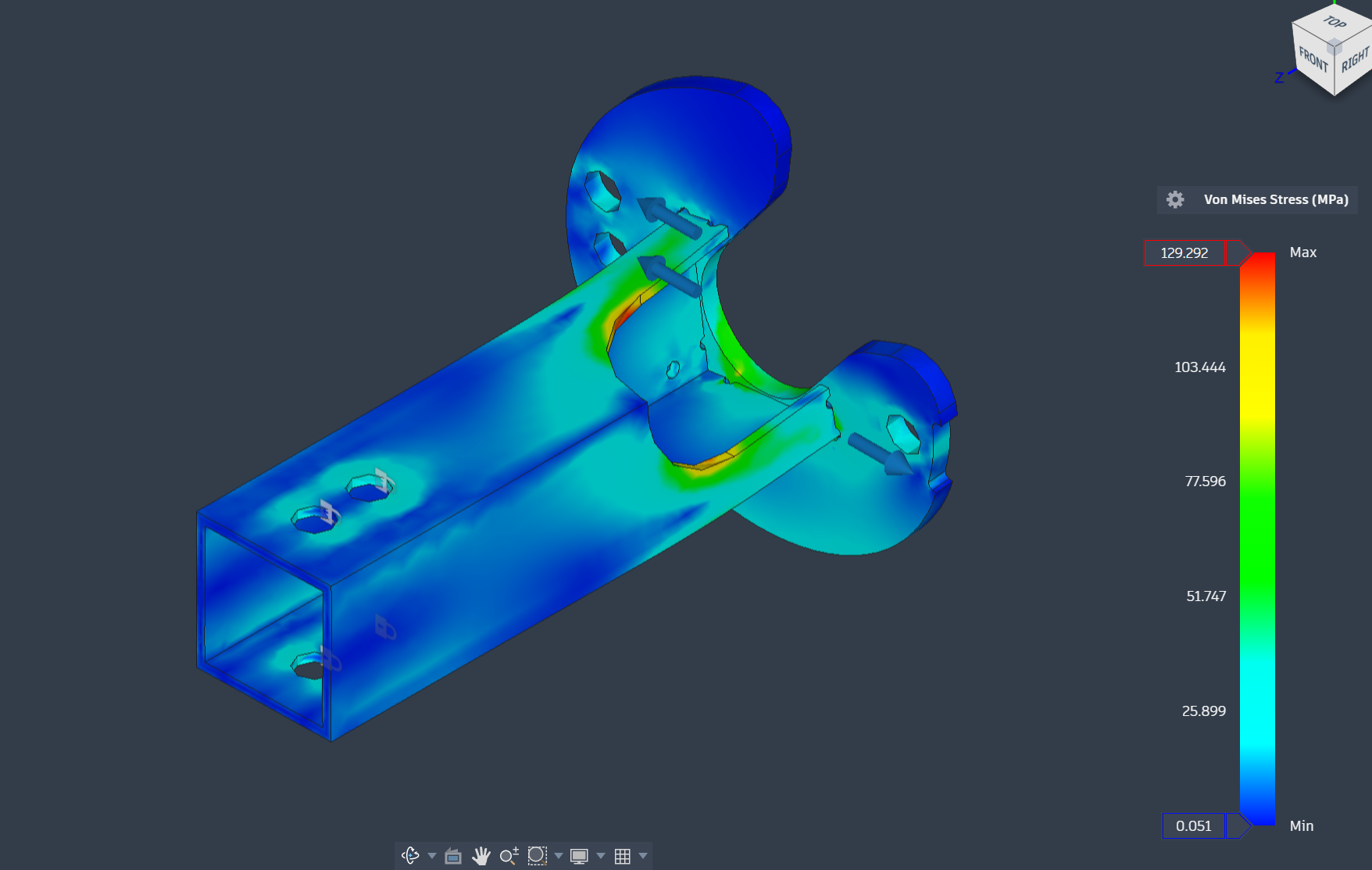

Catastrophic yield demonstrating that live axle was impossible

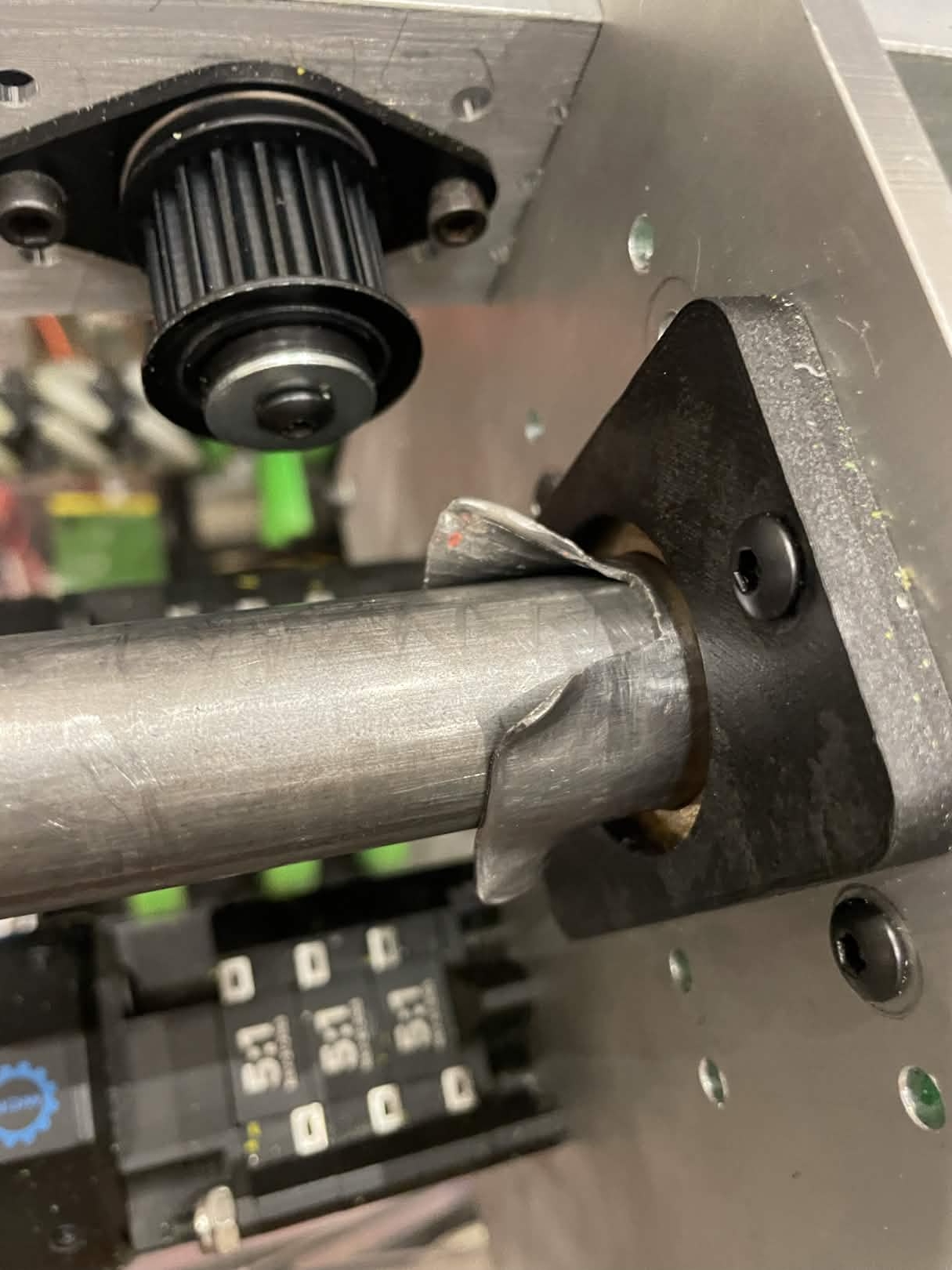

Hard pivot to dead-axle prototype one week before comp

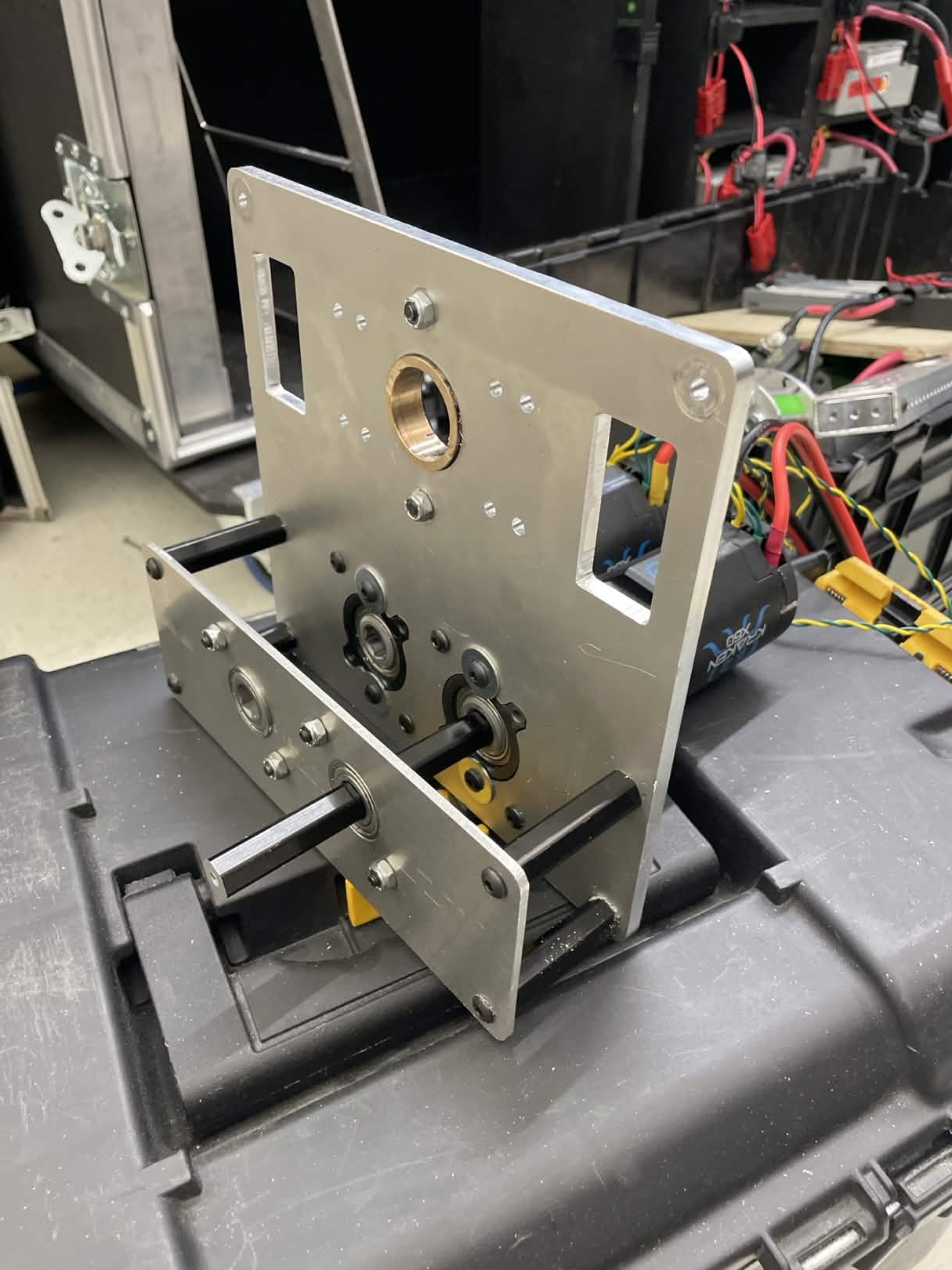

Custom jig to hold steel sprocket on router worksurface

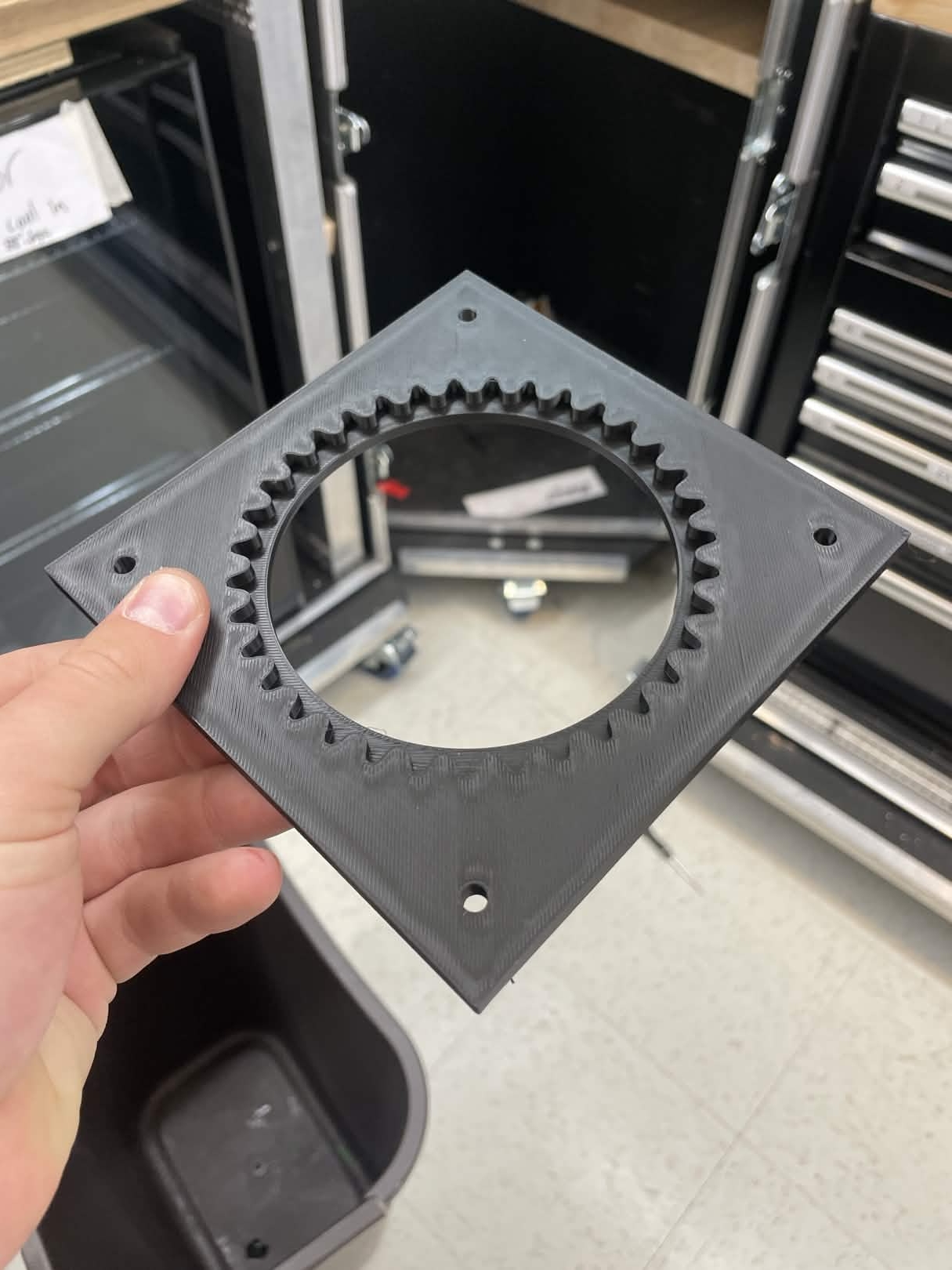

Assembling dead-axle prototype

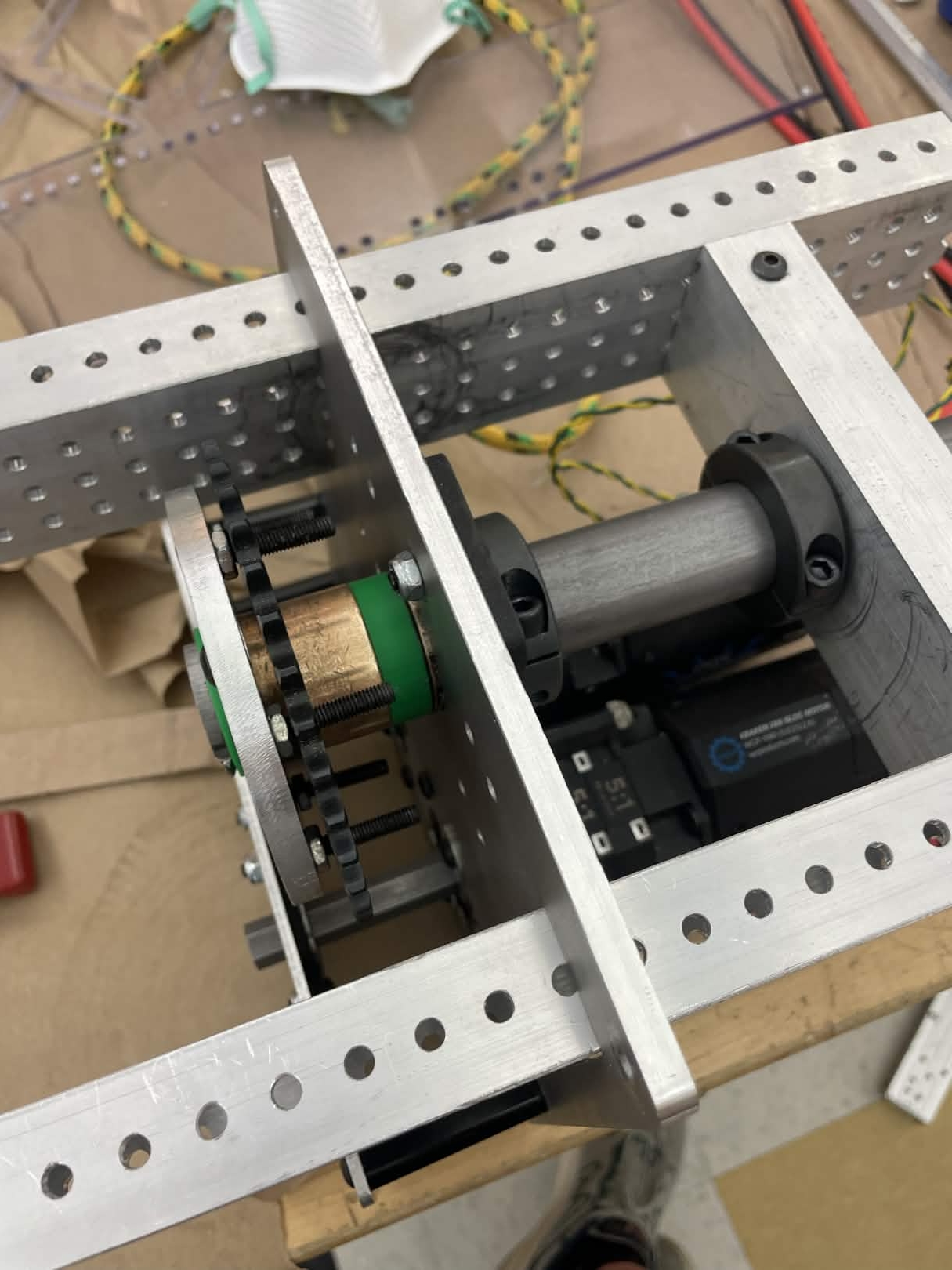

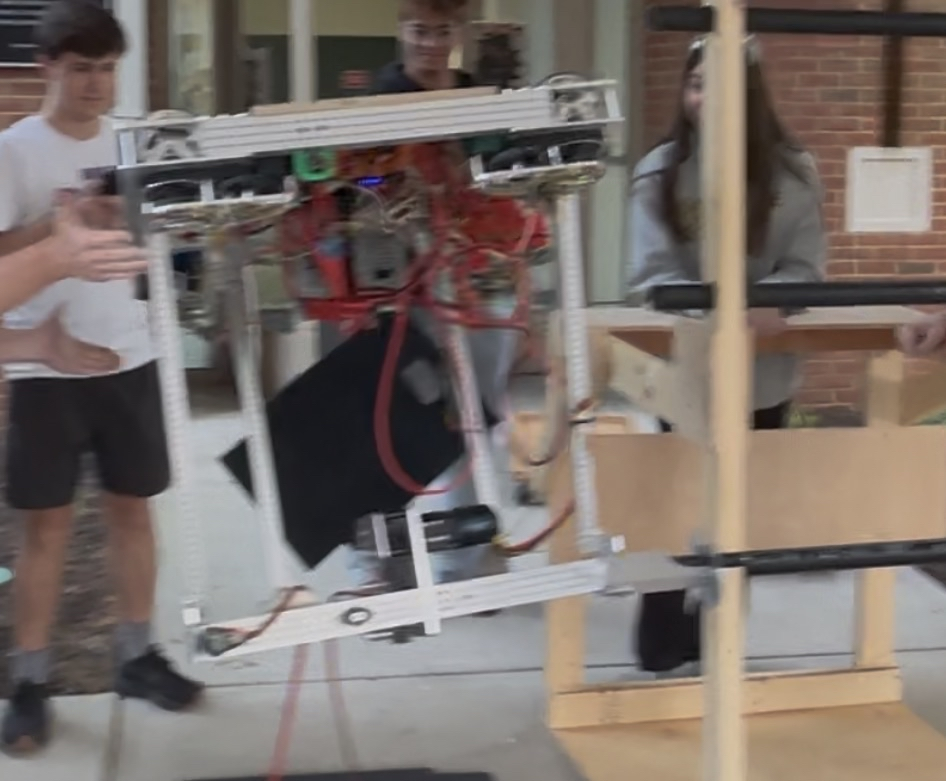

Still frame of flipped prototype
